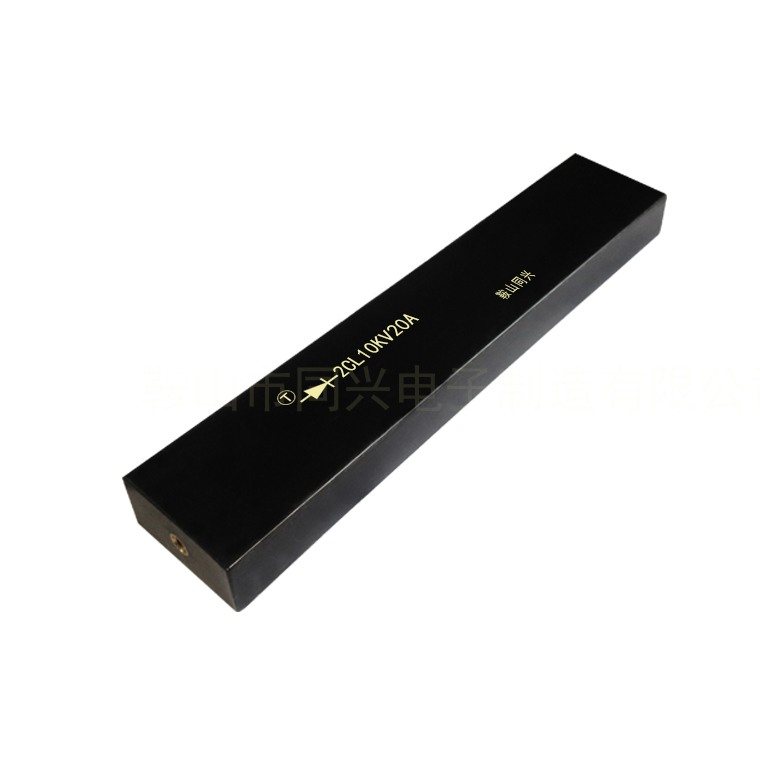

High-voltage silicon stack 2CL 10KV/20A power frequency/low frequency

High voltage silicon reactor 2CL10KV/20A power frequency/low frequency Anshan Tongxing high voltage silicon reactor factory direct sale
High voltage diode, high voltage rectifier bridge, high voltage silicon stack price discount
2CL10KV high voltage silicon reactor model commonly used 2CL10KV/5A 2CL 10KV/10A 2CL10KV/15A
2CL10KV/20A 2CL10KV/25A 2CL10KV/30A 2CL10KV/3A 2CL10KV/2A 2CL10KV/1A
2CL10KV/50A and other silicon stack parameters size optional!
product parameters
Brand: Tongxing
Model: 2CL10KV/20A
Reverse withstand voltage: 10KV
Forward rectification: 20A
Surge current: 800A
Internal Material: Silicon (Si)
Internal structure: mesa type
Connection mode: screw type
Frequency characteristics: low frequency/power frequency
Protection characteristics: avalanche breakdown protection
Operating temperature: -40 ° C ~ 175 ° C (155 ° C is the upper limit of continuous working temperature)
Appearance size: 240*75*25 295*60*25 and other size
Conventional field: High voltage power silicon stack

Product features:
advanced production technology
Accurate testing Aging testing
Strong forward surge tolerance
reverse avalanche breakdown characteristic
reverse withstand voltage high
Low reverse leakage current
High temperature welding guarantee
Internal chips enhance protection
Excellent mechanical properties Insulation properties
Corrosion resistance and moisture resistance
Adapt to harsh working environment
Exclusive use of heat pipe heat dissipation principle high efficiency heat dissipation
Operating temperature: -40 ° C ~ 175 ° C
Storage temperature: -40 ° C ~ 175 ° C

<Tongxing> Anshan High Voltage Silicon Reactor Model/High Voltage Diode/High Voltage Rectifier Bridge Conventional Product Series:
CL High Voltage Diode HVP High Voltage Diode Silicon Stack
High voltage silicon stack 2CL-2DL
High frequency and high voltage silicon stack 2CLG → 2DLG
HV rectifier half-bridge HV <$HQL <$2X2 CL <$HQGL
High voltage rectifier full bridge QL? QGL
Three-phase high-voltage rectifier bridge 3QL,
High frequency three-phase high voltage rectifier bridge 3QGL
High voltage rectifier components and other series of high voltage silicon rectifier devices factory direct sales, high voltage silicon stack wholesale, custom preferred Anshan Tongxing! The above series of model parameters of the products can be produced and customized, Tongxing manufacturing Seiko quality your long-term stability of the best suppliers, look forward to working with you for a long time!
   Anshan City Tongxing Electronics Manufacturing Co., Ltd. R & D and production of high-voltage rectifier devices production-type high-tech enterprises, with quality ** advanced production line technology, strict quality control, to ensure customer interests first, R & D team to provide technical support, leading industry standards, product models, a wide range of applications, industrial microwave high-voltage silicon stack, high frequency, test transformer, DC high-voltage generator, high frequency voltage doubler, X-ray medical equipment, plasma ray, Electron beam welding, vacuum coating power supply, high voltage electrostatic precipitator transformer rectifier silicon stack, desulfurization, crude oil dehydration transformer, laser power supply, high voltage ignition high voltage rectifier bridge silicon stack, high voltage DC power supply, launch device, science and technology research and development and other industries. Many years of product manufacturing experience, optimized production mode, to ensure product quality, in the development and production of a large number of manpower and material resources, equipped with simulation laboratories, high voltage test technology experienced engineers, from the production of aging packaging all adopt 4S management system, provide strong technical support and after-sales tracking service, high voltage test bench, leakage current detector, various parameter testing devices have reached the domestic advanced level, has been for industrial enterprises, civil equipment, Military enterprises and scientific research institutes provide the best and reliable technical support. The company currently uses production and various types of testing instruments are in the domestic peer leading level. Tongxing has always been based on scientific production and marketing model, adhere to the creation of Seiko products, based on the spirit of craftsmen in the industry, only for customers to produce assured products, from production to sales to after-sales service, fully guarantee the interests of customers, as a long-term cooperation concept!
   The company's long-term design for the majority of users proprietary high-voltage silicon reactor model (Parameters, shape, volume, style, installation method, special purpose, etc., exclusive heat pipe efficient heat dissipation principle) With high reverse breakdown voltage, low forward voltage drop, high current resistance, ultra-fast recovery time, low leakage current, good heat dissipation, avalanche protection, stable waveform, can withstand harsh use environment and other characteristics, high temperature welding guarantee, in the high current silicon stack exclusive heat pipe heat dissipation principle, efficient and safe solution after packaging heat dissipation difficult, poor heat dissipation problems, In the same industry to pull out the first place! Tongxing manufacturing Seiko quality! After having a perfect production system, through the combination of traditional channels and Internet channels, a complete marketing context has been formed. To provide the best quality service as its own responsibility, strictly control the quality, provide the best technical consultation and after-sales service, choose Tongxing, and be your long-term stable best partner! High voltage silicon stack 2CL10KV/20A silicon stack for power supply
