Product DescriptionCompany Info.<>
- Model:
- 2CL8KV/0.5A
- Processing customization:
- Yes
- Category:
- rectifier stack
- Packaging material:
- epoxy resin
- Encapsulation form:
- vacuum packaging
- reverse withstand voltage:
- 8KV
- forward rectified:
- 0.5A
- Resist surge current:
- 40A
- operating temperature:
- -55~175℃
- frequency characteristic:
- Power frequency/low frequency
- protection characteristics:
- Avalanche breakdown protection
- conventional volume:
- 55*10*10
- installation method:
- lead
- internal structure:
- Mesa-type
- Original factory:
- is

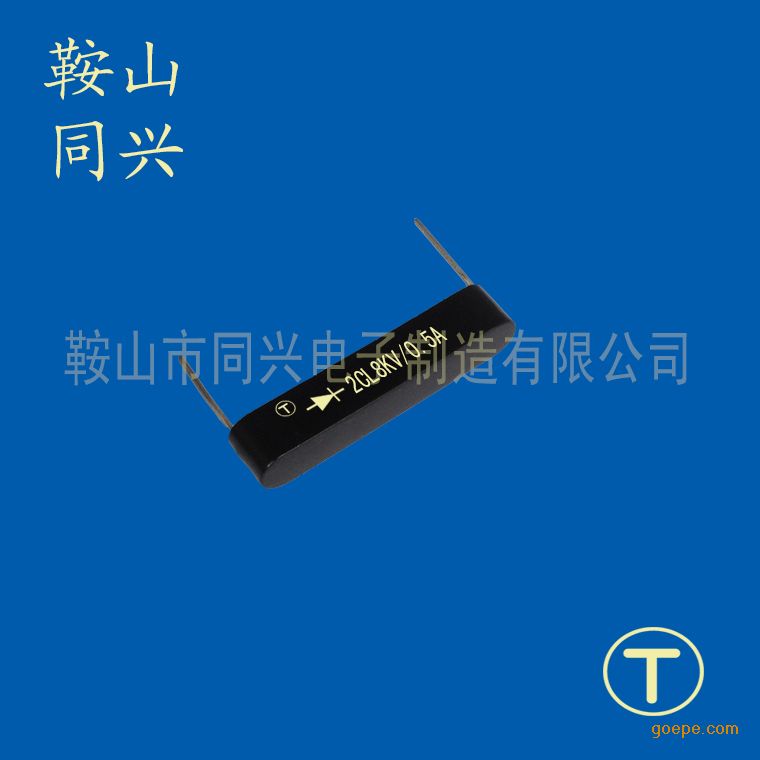

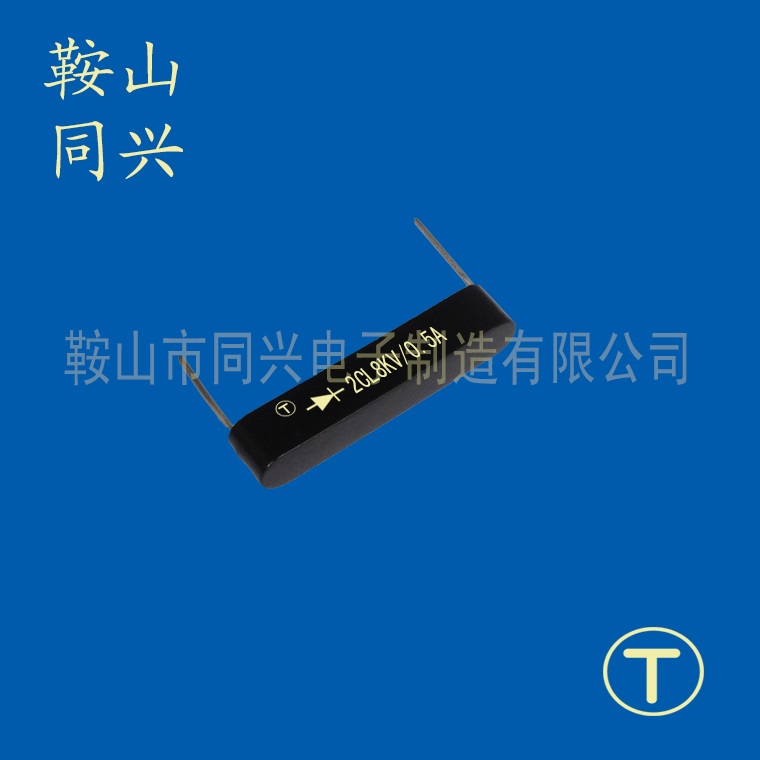

Tongxing High Voltage Silicon Stack 2CL8KV 0.5A Diode 500mA Rectifier Silicon Stack 2CL 8KV/0.5A
High voltage diode, high voltage rectifier bridge, high voltage silicon stack price discount
2CL 8KV high voltage silicon reactor model commonly used 2CL 8KV/0.1A <$2CL 8KV/0.2A <$
2CL8KV/0.3A丨2CL8KV/0.5A丨2CL8KV/0.6A丨2CL8KV/1A丨
2CL8KV/1.2A丨2CL8KV/1.5A丨2CL8KV/2A丨2CL8KV/2.5A丨
2CL8KV/3A丨2CL8KV/3.5A丨2CL8KV/5A丨2CL8KV/10A丨
2CL8KV/15A丨2CL8KV/20A丨2CL8KV/25A丨2CL8KV/30A丨
2CL8KV/50A and other high voltage silicon stack parameters can be selected
500mA high voltage silicon stack 2CL2KV/500mA <$2CL 3KV/500mA <$2CL 5KV/500mA
2CL8KV/500mA丨2CL10KV/500mA丨2CL12KV/500mA丨
2CK15KV/500mA丨2CL20KV/500mA丨2CL25KV/500mA丨
2CL30KV/500mA丨2CL35KV/500mA丨2CL40KV/500mA丨
2CL45KV/500mA丨2CL50KV/500mA丨2CL60KV/500mA丨
2CL80KV/500mA丨2CL100KV/500mA丨2CL120KV/500mA丨
2CL150KV/500mA丨2CL180KV/500mA丨2CL200KV/500mA丨
2CL250KV/500mA丨2CL300KV/500mA丨2CL360KV/500mA丨
2CL400KV/500mA丨2CL450KV/500mA丨2CL500KV/500mA丨
2CL 8KV/0.5A High Voltage Silicon Stack Parameters
Brand: Tongxing
Product model: 2CL8KV/0.5A <$2CL 8KV/500mA
Reverse withstand voltage: 8KV
Forward rectification: 0.5A
Surge current: 30A
Internal material: imported silicon (Si) chip
Internal structure: mesa type
Connection method: lead type screw *2
Frequency characteristics: low frequency/power frequency
Protection characteristics: avalanche protection characteristics
Original: Yes
Operating temperature: -55 ° C to 175 ° C (155 ° C is the upper limit of continuous working temperature)
Appearance size: 55*12*12 55*10*10mm and other size
General field: Industrial power supply/high voltage power supply/high frequency machine high voltage silicon stack
Product features: Tongxing high voltage silicon stack 2CL8KV 0.5A diode 500mA rectifier silicon stack 2CL8KV/0.5A
advanced production technology
Strong forward surge withstand capacity, withstand instantaneous high impact
Reverse avalanche protection to avoid damage
High reverse withstand voltage, long service life
Low reverse leakage current, low heat generation operation
High temperature welding ensures strong internal connection
Internal chips strengthen protection and work stably for a long time
Excellent mechanical properties Insulation properties
Corrosion resistance and moisture resistance
Adapt to harsh working environment
Operating temperature: -55 ° C ~ 175 ° C
Storage temperature: -55 ° C ~ 175 ° C High voltage silicon stack 2CL 8KV/0.5A diode rectifier silicon stack 2CL 8KV/0.5A
<Tongxing> Anshan High Voltage Silicon Stack/High Voltage Diode/High Voltage Rectifier Bridge Conventional Product Series:
High voltage diode CL3KV~20KV/200mA~10A
High voltage diode silicon stack HVP- 6KV~20KV/0.5A~2A
High voltage silicon stack 2CL 1KV~500KV/50mA~200A
High voltage silicon stack 2DL 1KV~500KV/50mA~200A

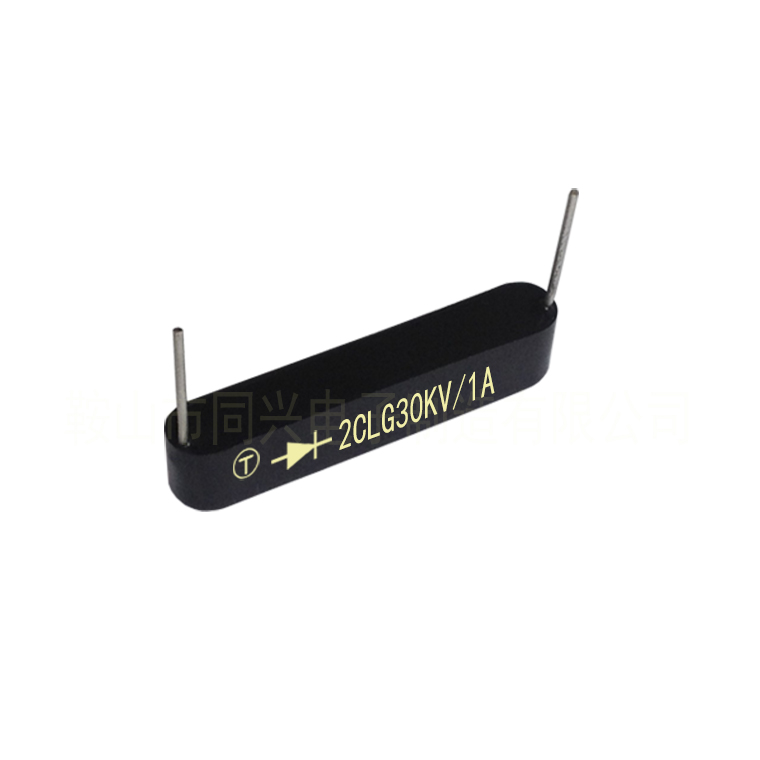

High frequency and high voltage silicon stack 2CLG <$2DLG 3KV~400KV/0.02A~180A
HV rectifier half-bridge HV <$HQL <$2X2 CL <$HQGL5KV~400KV/20mA~150A
High voltage rectifier full bridge QL ① QGL4KV~ 300KV/100mA ~ 60A
Three-phase high-voltage rectifier bridge 3QL3KV~200KV/100mA~90A
High frequency three-phase high voltage rectifier bridge 3QGL3KV~180KV/100mA~80A
High voltage silicon stack, high voltage diode, high voltage rectifier bridge
Vacuum coating <$Electrostatic dust removal <$High voltage test equipment <$High voltage test equipment <$High voltage ignition
DC high-voltage generator <$industrial microwave <$X-ray medical equipment <$laser equipment <$radar emission <$high-speed analyzer <$
Charge and discharge equipment ① High frequency wave ① High frequency machine (high frequency induction heating, high frequency quenching) ① University laboratory ①
Military/scientific research unit ① oilfield dehydration equipment ① high voltage protector ①Tongxing high voltage silicon stack 2CL8KV 0.5A diode 500mA rectifier silicon stack 2CL8KV/0.5A
